Patented glass-fibre reinforced multi-layer pipe, fusion-welded joint to joint. Made in Ahmedabad for 20,000+ installations across India.
Choose your duty

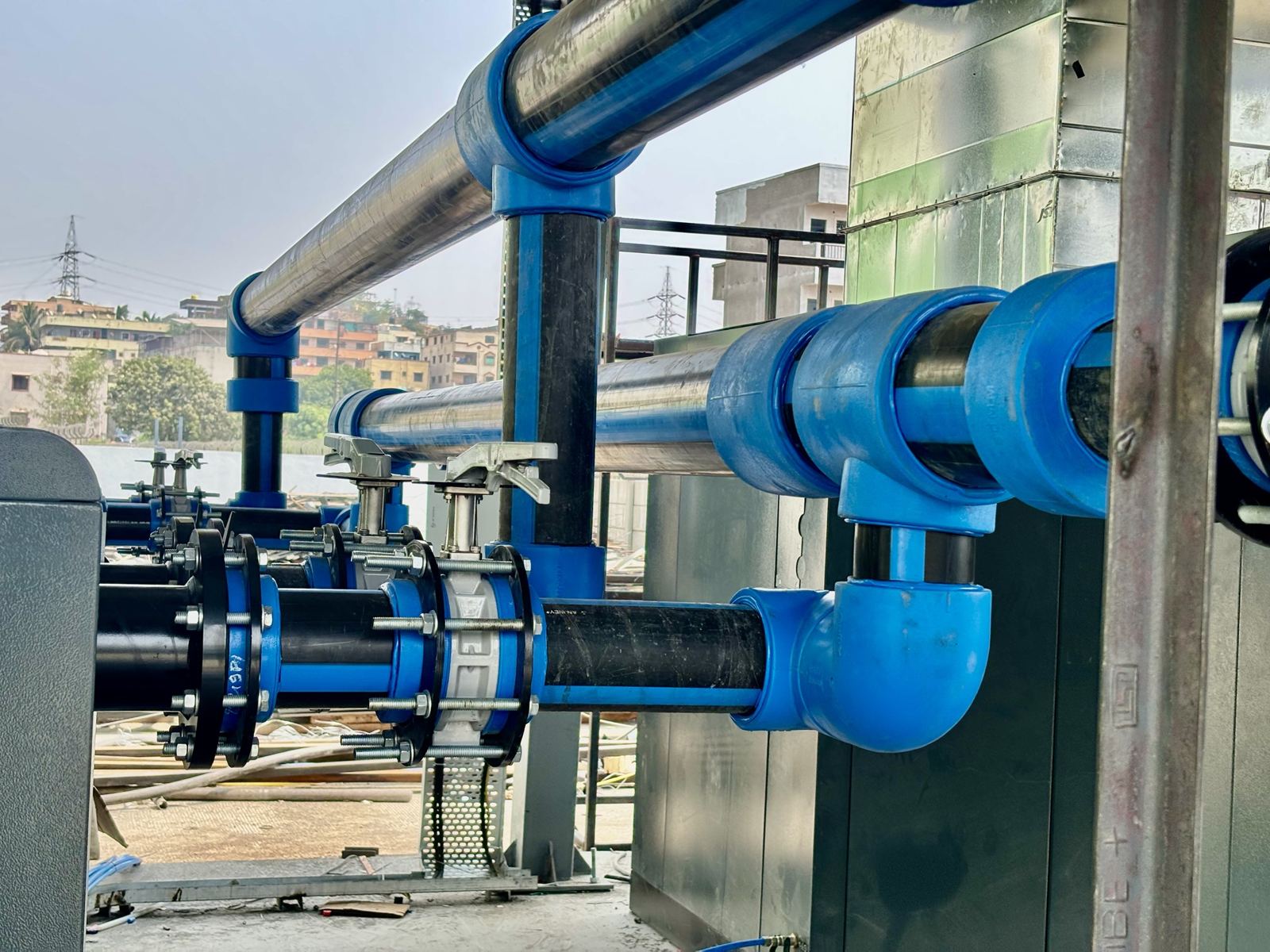

Patented multi-layer pneumatic pipe. A bigger bore at the same outside diameter and fused joints with nothing to leak, so the compressor works less for the same air at the tool.

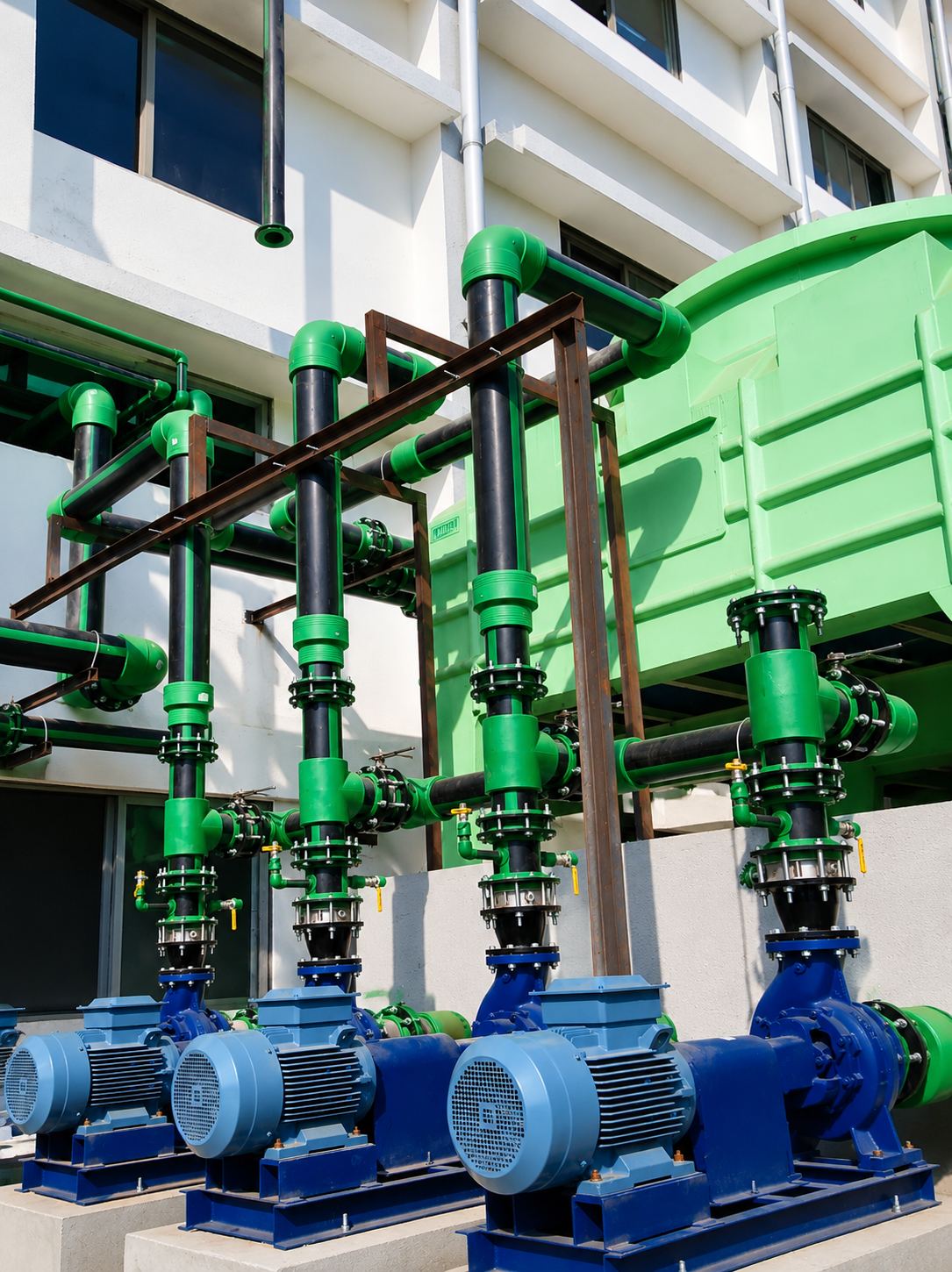

Glass-fibre reinforced composite with a carbon UV shell. One material for the whole water block, a quarter of the thermal expansion of plain PP, and outdoor runs without cladding.
Polypropylene homopolymer as one homogeneous wall. No liner to lift and no bond line for an acid to find, with electrofusion on large bore.
Inside the wall · Patent No. 412111
Each line is engineered for one kind of service. If your plant has all three, we supply all three on one fusion system, with one fitter training and one site team.
20–50 mm: PN 16, PN 20 · 63–630 mm: PN 10, PN 16, PN 20 · ISO 15874-2:2012 · 5 m lengths
View PPCH PPRCT®Cooling, chilled, RO, DM, raw and hot water20–50 mm: PN 16, PN 20 · 63–630 mm: PN 10, PN 16, PN 20 · ISO 15874-2:2012 · 5 m lengths
View PPRCT PPHAcids, alkalis, chemical drains and ETP20–630 mm · PN 10, PN 16, PN 20 · EN ISO 15494 · Single homogeneous wall
View PPH"FR" in PPCH FR and PPRCT FR stands for fibre-glass reinforced. Suitability for any line depends on the fluid, its concentration, temperature and pressure together. Send us your service conditions and we confirm each line in writing.
Socket fusion fittings up to 160 mm (200 mm on PPH), electrofusion from 200 to 630 mm, flanges, branch adaptors and threaded transitions. All moulded to the same material as the pipe.
Large-diameter jointing
On a 300-metre run there are around fifty joints. Above 160 mm we join pipe by electrofusion, so no joint narrows the bore. Butt-fused systems leave a ring at every joint that the compressor or pump pays for continuously.
| Pipe size | Bore | Typical butt-fusion bead | Bore at joint | Flow area lost at each joint |
|---|---|---|---|---|
| 110 mm, PN 10 | 90 mm | 2 mm | 86 mm | 8.7% |
| 160 mm, PN 10 | 130 mm | 3 mm | 124 mm | 9.0% |
| 250 mm, PN 10 | 204 mm | 4 mm | 196 mm | 7.7% |
| 315 mm, PN 10 | 258 mm | 4 mm | 250 mm | 6.1% |
| Anjney electrofusion | Full bore | None | Full bore | 0% |
Bead heights are indicative for hot-plate butt fusion and vary with wall thickness, melt temperature and jointing pressure.
Why plants change

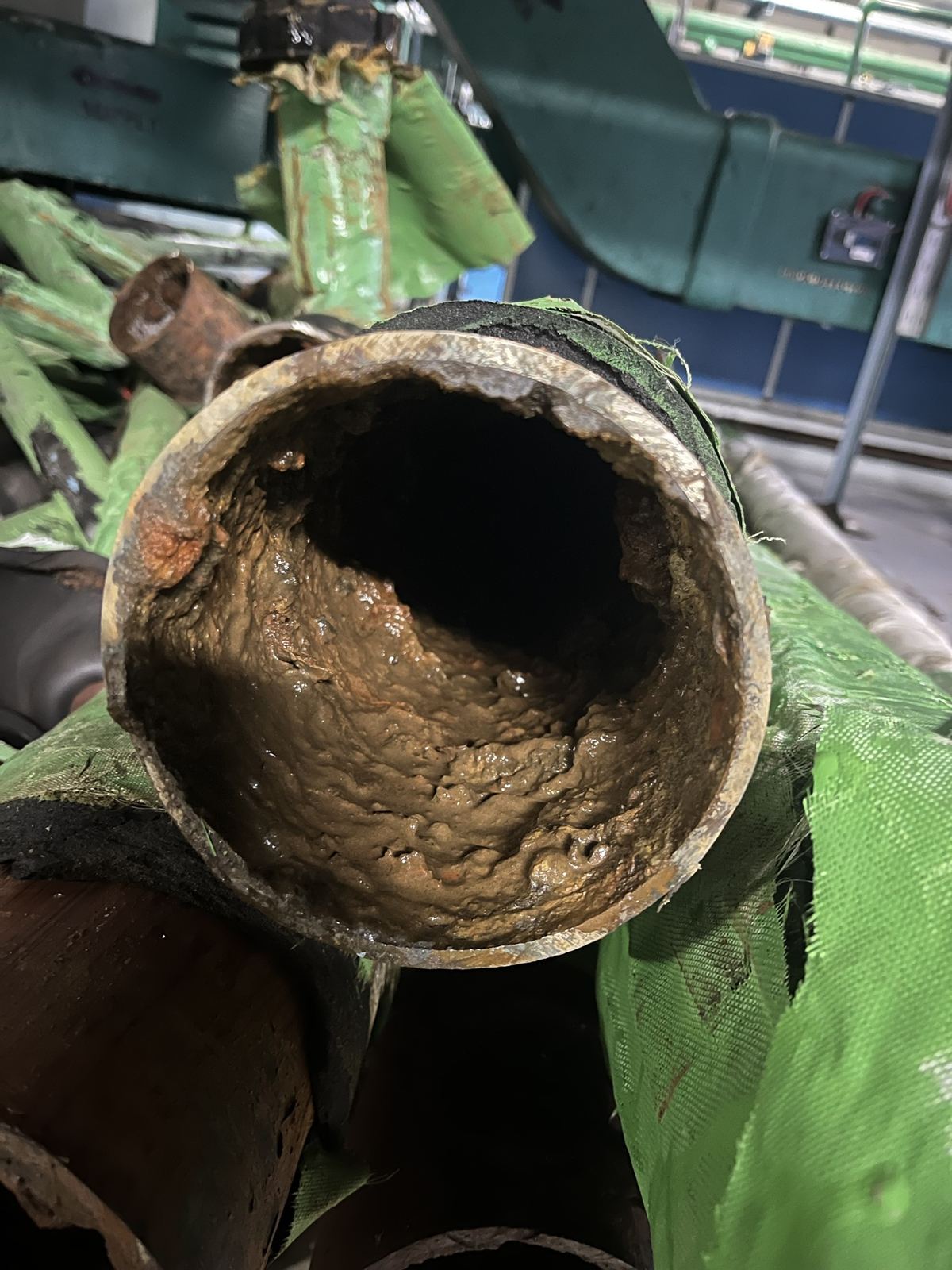

Lines like this are what our clients replace. Rust and scale narrow the bore, raise pressure drop and shed particles into air tools, valves and heat exchangers.
The same three lines serve very different plants. These are the services we supply most often, by industry.
Solar cell and module manufacturing
Module-line compressed air on PPCH; chiller, cooling tower, drain and utility water on PPRCT; and PPH ready for ETP and chemical lines. Every utility line from one supplier, on one fusion system. Plant-wise sizes and reference contacts are shared with project teams on request.
| Plant | Scope | Metres |
|---|---|---|
| Redren Solar Rangpar, Jalida | Compressed air Chiller water | 4,520 |
| Insolation Energy (INA Solar) Narmadapuram | Compressed air Cooling, raw and RO water | 3,925 |
| Hanu Green Energy | Compressed air | 1,625 |
| PMEA Solar Mundra | Compressed air Cooling tower | 945 |
| Adani Solar Mundra SEZ | Cooling tower and drain line | 642 |
| Vishakha Green Mundra SEZ | Cooling tower | 350 |
| Atal Solar Tankara | Compressed air | 125 |
| Solex Solar Surat | Compressed air Chiller water | On request |
Compressed air, cooling and chilled water, DM water, reagent transfer and corrosive drains from API blocks and QC laboratories.
Cooling tower and chilled water, process lines, acid and alkali transfer, dosing, scrubbers and tank-farm manifolds.
Spinning, weaving and processing: compressed air to looms and frames, and cooling and chilled water for humidification plants.

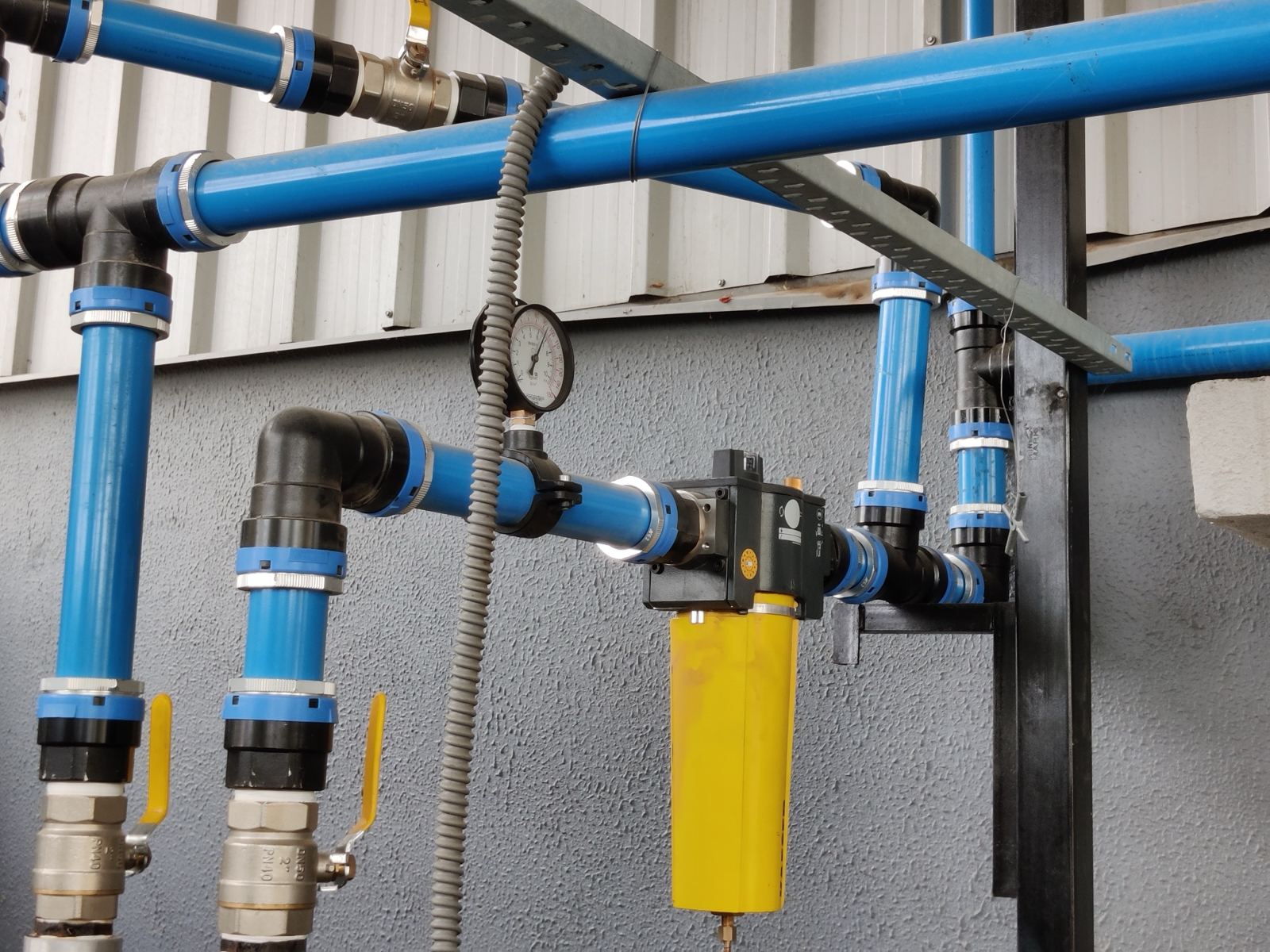

Compressed-air ring mains and tool drops across assembly lines, paint shops and machine shops; chilled and condenser water.
Compressed air and cooling water, plus pickling-line headers, spent-acid transfer and fume-scrubber duty on PPH.
Compressed air for presses, glazing and kiln lines, where dry, clean air protects the finish.
Compressed air and utility water across the mill, and chemical preparation and dosing lines.
RO and utility water, chilled water and compressed air, on a bore that does not corrode or shed.
Segregated acid and alkali effluent headers, neutralisation, dosing and concentrate transfer.

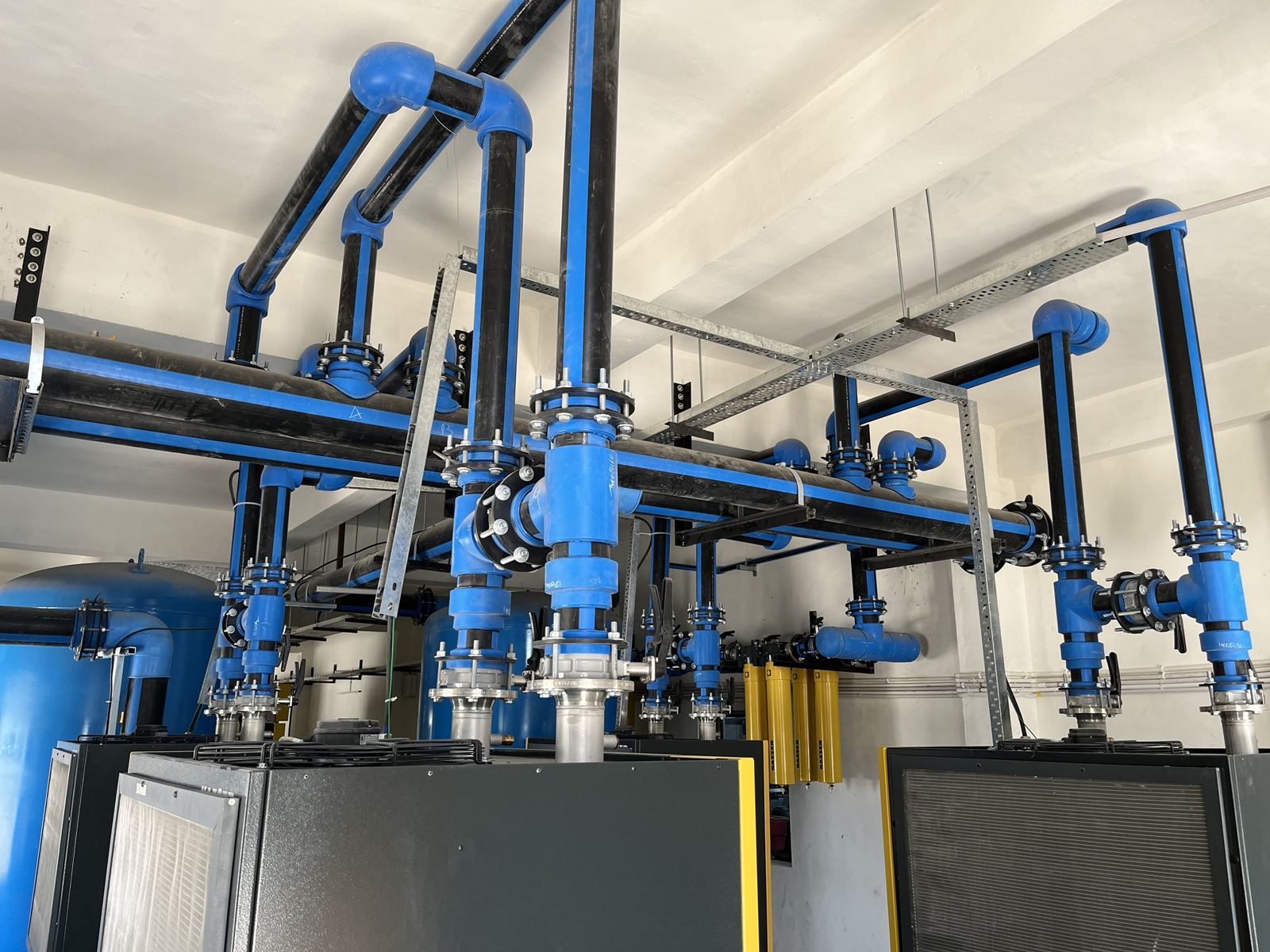

Compressor rooms, cooling towers, pipe racks and chemical trenches. More than 400 installation photos, sorted by product and application.
Textile, automobile, chemical, engineering, pharmaceutical, ceramic and paper plants across India and overseas. Company marks are shown only to indicate supply history.

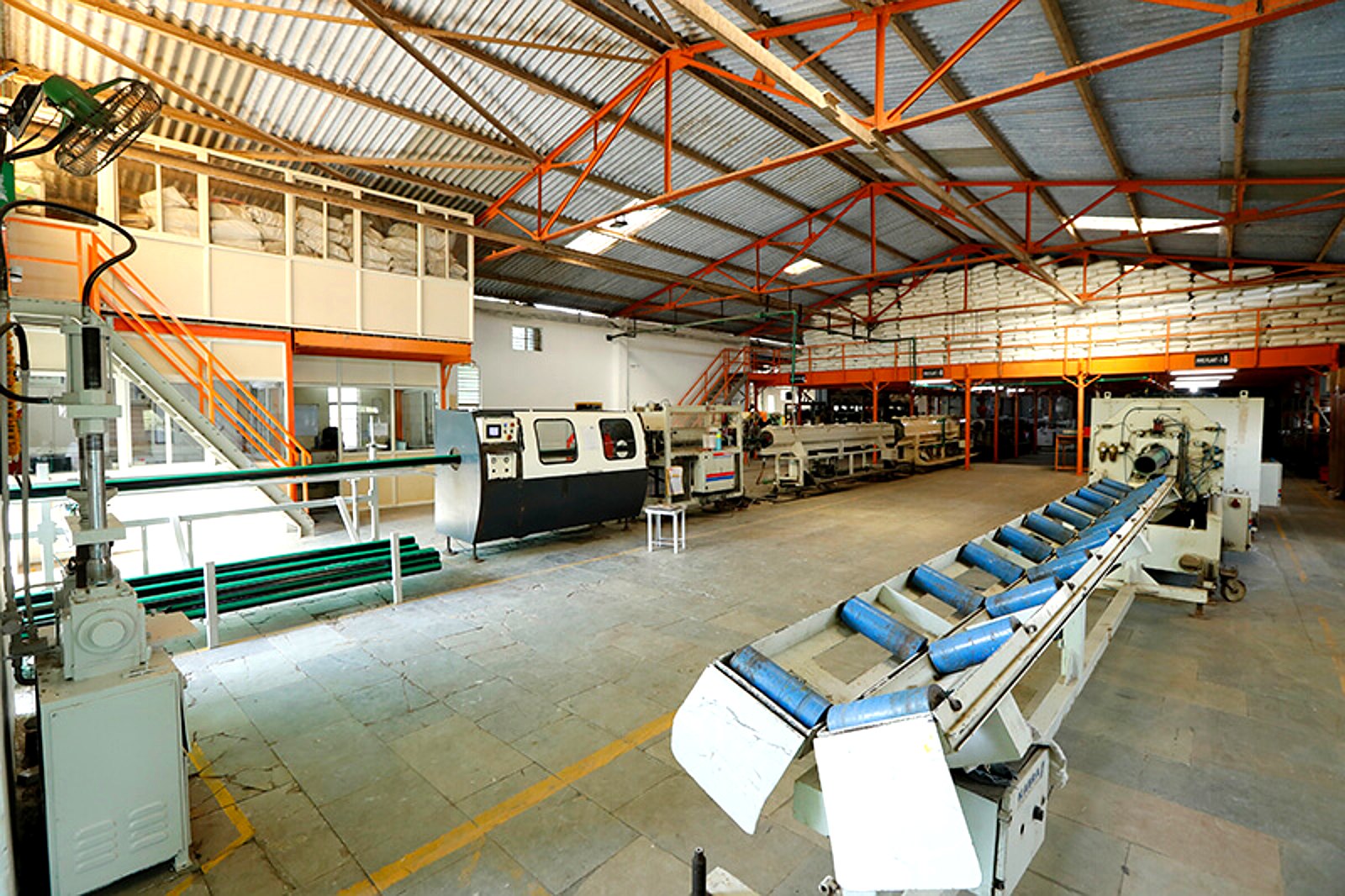

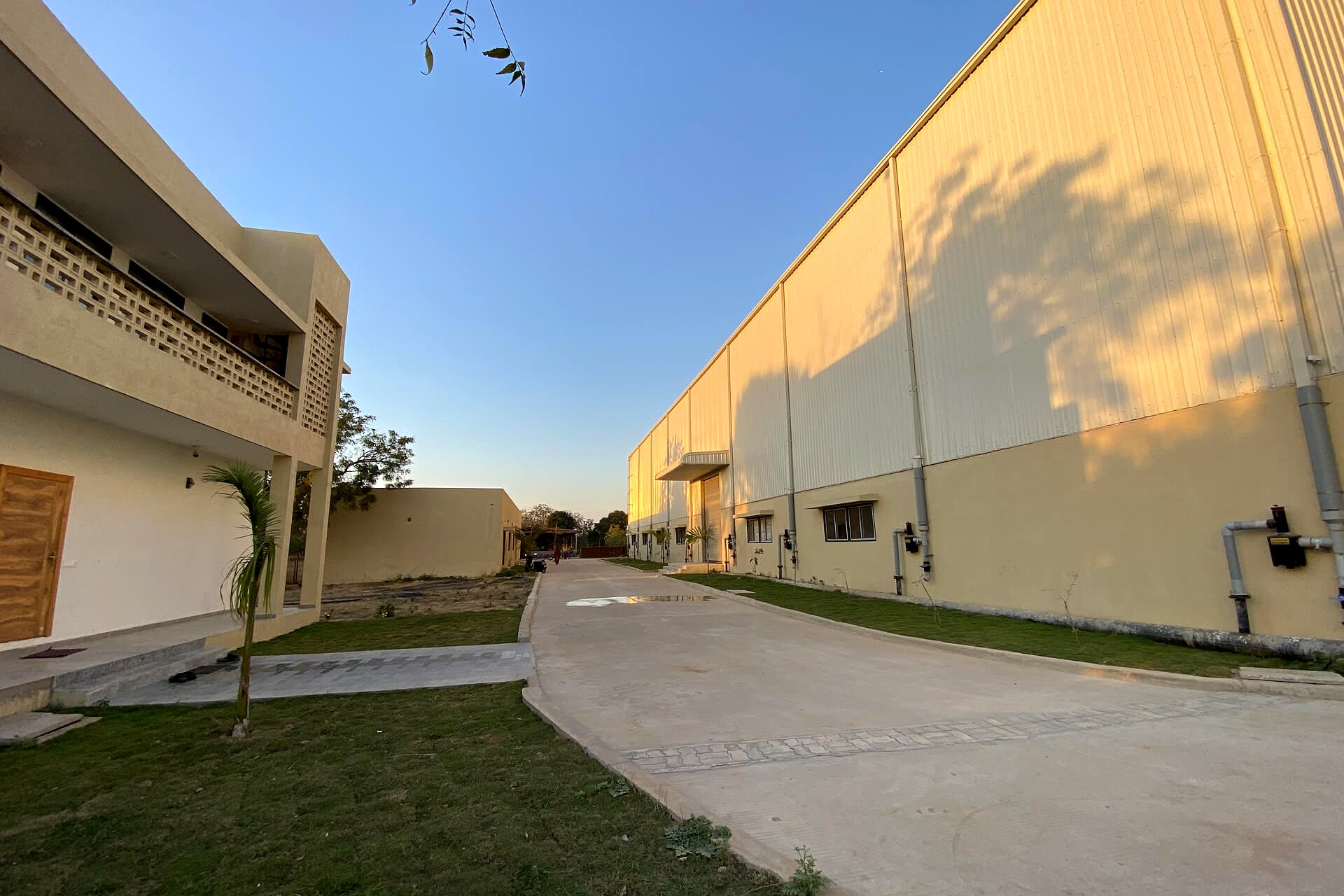

Extrusion, moulding, electrofusion fittings and testing at our own plant in Nandej-Barejadi, with the corporate house in Satellite, Ahmedabad.
Our technology is our own: patented, trade-marked and tested by CIPET, the government plastics institute in Ahmedabad.
Multi Layered PPCH Pipe, granted 22 November 2022 for a 20-year term.
View certificatePPRCT FR composite pipe held 3.8 MPa hoop stress for 1000 hours at 95 °C with no swelling and no bursting.
View CIPET reportCarbon black content of the PPRCT UV layer, with satisfactory dispersion and UV stabiliser present (2025).
View CIPET reportAnjney founded in Ahmedabad.
Anjney Tubes India established for pipes, fittings and installation.
Glass-reinforcement technology developed in-house.
Dealer network launched in India and overseas.
Patent application filed for the multi-layered PPCH pipe.
PPCH registered as a trade mark.
PPRCT registered as a trade mark. CIPET 1000-hour test at 95 °C passed.
Anjney Corporate House opened in Ahmedabad.
Patent No. 412111 granted. Electrofusion fittings launched.
PPH chemical piping launched, with electrofusion to 630 mm.
Open them here or download. For drawings, BOQ support or a reference visit, send an enquiry.
PPCH FR Pneumatic Pipe is Anjney's patented multi-layer, glass-fibre reinforced polypropylene pipe for compressed air, instrument air, nitrogen and vacuum. It is made to ISO 15874-2:2012 in 20 to 630 mm, protected by Indian Patent No. 412111, and PPCH is a registered trade mark. PPCH specifications.

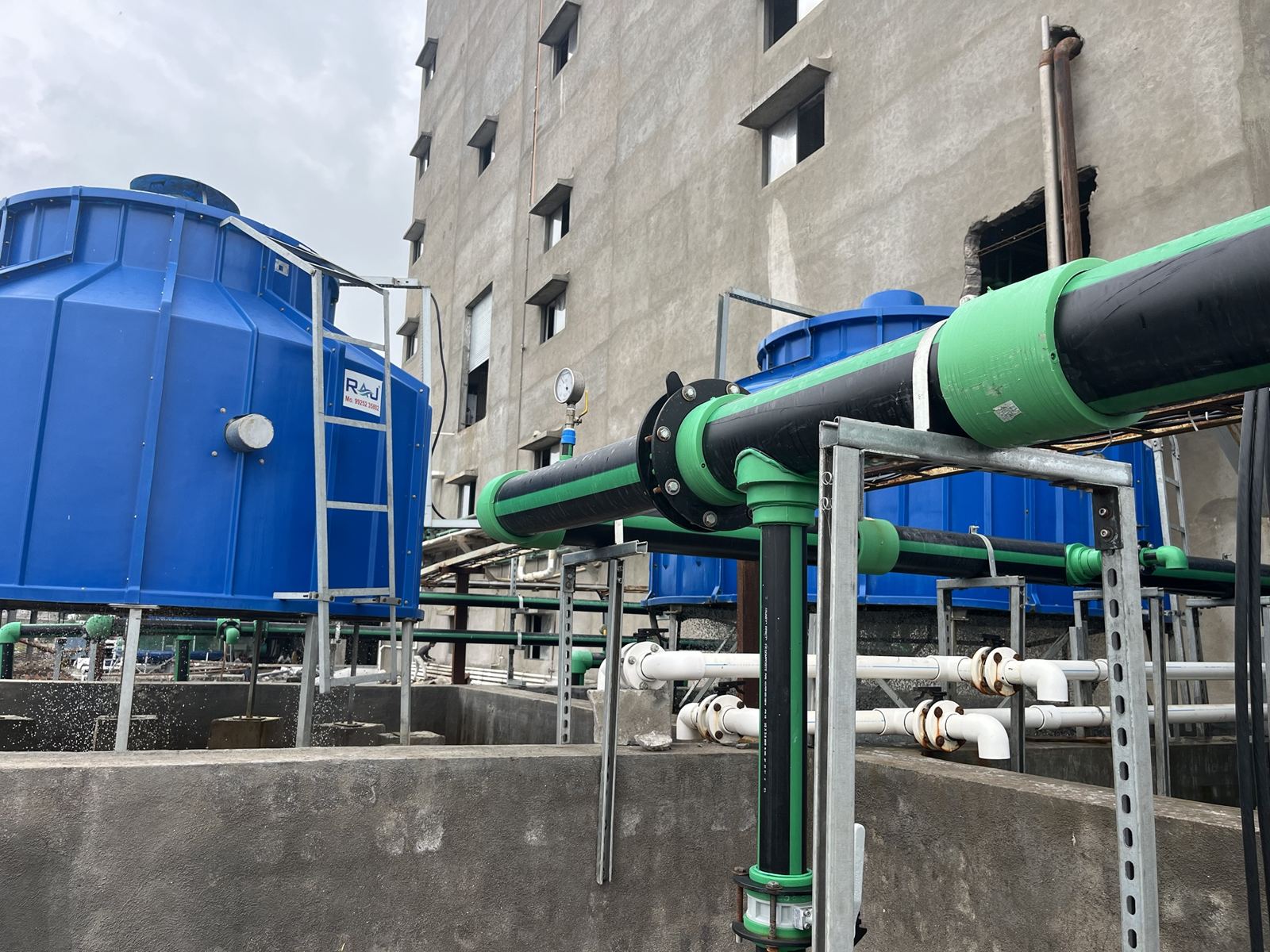

PPRCT FR Composite Pipe carries cooling water, chilled water, cooling-tower, RO, DM, raw and hot water, and hot condensate. Its glass-fibre core cuts thermal expansion to 0.035 mm/m·K and its carbon UV layer allows outdoor runs without cladding. PPRCT specifications.
PPH is polypropylene homopolymer, the stiffest and most chemically resistant grade of polypropylene. Anjney PPH is a single homogeneous wall for acids, alkalis, chemical drains and ETP lines, made to EN ISO 15494 in 20 to 630 mm. PPH specifications.
FR stands for fibre-glass reinforced: a glass-fibre layer in the middle of the pipe wall. It does not mean flame retardant.
By socket fusion up to 160 mm (200 mm on PPH) and by electrofusion from 200 to 630 mm. We do not use butt fusion, because it leaves a bead inside the bore at every joint. See the fittings range.
Yes. Write to export@anjney.com. Feedback from overseas clients is on our credentials page.
Send the line schedule or P&ID with sizes, lengths, service and design conditions. We return a sized network, a bill of material and a like-for-like installed cost against your current specification.
